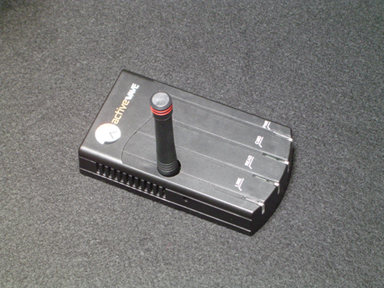

Standard Field Generator

A field generator woke tags up. The Standard Field Generator sent wake-up commands to tags at 433 MHz, and the tags in range answered with their own data.

It could call every tag, one type of tag, or a single tag by its ID. Its transmit range could change to fit the area it covered.

It had two modes. It could switch on and call tags for a set time, then switch off for a set time. Or a motion sensor could switch it on when something moved.

Its datasheet lists no receive frequency. A serial programming cable carried its settings from the host.

Specifications

The datasheets are historical documents. Their phone numbers, addresses and e-mail are no longer ActiveWave's.

Functionality Wakes up tags

Multi-Tag Read Capability Yes

Transmit Frequency to Tag 433 MHz

Receive Frequency from Tag not applicable

Range 30m (100 feet) to tag

Host Communications RS-232 FGen Programming Cable

Power 12Vdc, 1.5A

Dimensions without antennas 122 mm x 69 mm x 27 mm (4.8 in x 2.7 in x 1.1 in)
with antennas 122 mm x 69 mm x 100 mm (4.8 in x 2.7 in x 3.9 in)

Weight 96 grams (3.4 oz)

Case Material ABS (Acrylonitrile Butadiene Styrene)

Temperature Operating -35C to +50C (-31F to +122F)
Storage -40C to +85C (-40F to +185F)

Indicators Red LED On while transmitting packet to tag.

Connectors Power 12Vdc, 1.5A
Input Optional motion detector (RJ-11 female)

Functionality	Wakes up tags
Multi-Tag Read Capability	Yes
Transmit Frequency to Tag	433 MHz
Receive Frequency from Tag	not applicable
Range	30m (100 feet) to tag
Host Communications	RS-232 FGen Programming Cable
Power	12Vdc, 1.5A
Dimensions	without antennas 122 mm x 69 mm x 27 mm (4.8 in x 2.7 in x 1.1 in) with antennas 122 mm x 69 mm x 100 mm (4.8 in x 2.7 in x 3.9 in)
Weight	96 grams (3.4 oz)
Case Material	ABS (Acrylonitrile Butadiene Styrene)
Temperature	Operating -35C to +50C (-31F to +122F) Storage -40C to +85C (-40F to +185F)
Indicators	Red LED On while transmitting packet to tag.
Connectors	Power 12Vdc, 1.5A Input Optional motion detector (RJ-11 female)

Quoted from page 2 of the Standard Field Generator datasheet (version 10).

These figures are the original units' claims, quoted as their source printed them. Where two ActiveWave datasheets disagree, this site quotes each and does not reconcile them. A rating or a test result belongs to the original units and does not carry over to a rebuild.

Nothing on this site says a rebuild may transmit on these frequencies as they are. Radio rules differ by country, and the TigeRFID project checks them before it chooses a rebuild's radios.
